A pneumatic hinge drilling machine can speed up repeatable cup holes for cabinet doors, but the right choice depends on your workflow, air supply, and how much setup space you have. I’d put the HNZXIB 110V first as the best overall starting point among these options, with the HQHAOTWU Double-Station standing out for paired work and the ADWAN manual machine for buyers who want a simpler, air-free approach. Single-head machines favor a smaller footprint and straightforward operation, while double-station and higher-power models may suit heavier production but bring added setup demands. Portability also varies, and a machine described as portable still needs a stable work surface and dependable alignment. Read on for the full breakdown and the buying factors that separate these choices.
Prime made for students and young adults
- Fast, free delivery for dorm and study essentials
- Prime Video and Amazon Music included
- Member-only deals
Key Takeaways
- HNZXIB 110V is the roundup’s best overall starting point: its named pneumatic, 110V format makes it a direct fit for buyers seeking a powered hinge boring machine, though buyers should verify included tooling and setup details.
- HQHAOTWU Double-Station targets throughput: two stations can support paired or repeated operations, but the larger arrangement makes less sense for occasional work or tight shops.
- ADWAN is the air-free outlier: its manual operation and included two drill bits offer a simpler route for low-volume work, at the cost of powered drilling speed.
- Several portable 1100W listings occupy similar territory: PreAsion, LLNC, and the generic 1100W machine should be compared by dimensions, clamping, and included accessories rather than wattage alone.
- Power figures do not settle the ranking: LGXEnzhuo and THUXEON list 1500W, while multiple alternatives list 1100W, but repeatability, workpiece support, and compatibility with the buyer’s air and electrical setup matter just as much.
| HNZXIB Pneumatic Hinge Drilling Machine, 110V |  | Best for Flexible Materials | Voltage: 110V | Motor power: 1.5 kW | Maximum speed: 2800 rpm | VIEW ON AMAZON | See Our Full Breakdown |
| TECHTONGDA Hinge Boring Drill Press Machine |  | Best for Three-Hole Control | Drill type: Drill press | Power: Air powered; requires an electric and air source | Motor power: 1.5 kW in description; 1.1 kW in specifications | VIEW ON AMAZON | See Our Full Breakdown |
| ADWAN Manual Hinge Drilling Machine with Two Drill Bits |  | Best for Pattern Flexibility | Included drill bits: 48-6 and 45-9.5 kits | Adjustable drilling depth: 0–40 mm | Positioning dial length: 50 cm (19.6 in) | VIEW ON AMAZON | See Our Full Breakdown |
| LGXEnzhuo 110V Pneumatic Single-Head Hinge Boring Machine, 1.5 kW |  | Best for Long Cabinet Doors | Power source: Air powered | Voltage: 110 V AC | Motor power: 1.5 kW | VIEW ON AMAZON | See Our Full Breakdown |
| Banfluxion 110V Pneumatic Woodworking Hinge Drilling Machine |  | Best for Heavy-Duty Shop Setup | Voltage: 110V | Power: 1500W | Maximum speed: 2880 rpm | VIEW ON AMAZON | See Our Full Breakdown |
| HESMAX 1100W Hinge Drilling Machine for Woodworking |  | Best for Adjustable Setup | Voltage: 110 V | Power: 1100 W | Maximum rotational speed: 2840 rpm | VIEW ON AMAZON | See Our Full Breakdown |
| PreAsion 110V Portable Hinge Drilling Machine, 1100W |  | Best for Positioning Flexibility | Voltage: 110 V | Power: 1100 W | Maximum drilling depth: 0–40 mm | VIEW ON AMAZON | See Our Full Breakdown |
| BREVELTION 110V Pneumatic Hinge Boring Machine, Single Head, 48-6 Combined Drill |  | Best for Deeper Drilling | Voltage: 110 V | Power: 1500 W | Power source: Air powered | VIEW ON AMAZON | See Our Full Breakdown |
| LLNC Portable Hinge Boring Machine, 110V, 1100W |  | Best for Compact Tool Setups | Voltage: 110 V | Power: 1100 W | Rotation speed: 2840 rpm | VIEW ON AMAZON | See Our Full Breakdown |
| 1100W Portable Woodworking Hinge Boring Machine |  | Best for One-Operation Drilling | Voltage: 110 V | Motor power: 1100 W | Maximum rotational speed: 2850 rpm | VIEW ON AMAZON | See Our Full Breakdown |
| HQHAOTWU Pneumatic Double-Station Hinge Boring Drill Press |  | Best for High-Volume Production | Power source: Air powered | Voltage: 110 V | Motor power: 1.5 kW × 2 | VIEW ON AMAZON | See Our Full Breakdown |

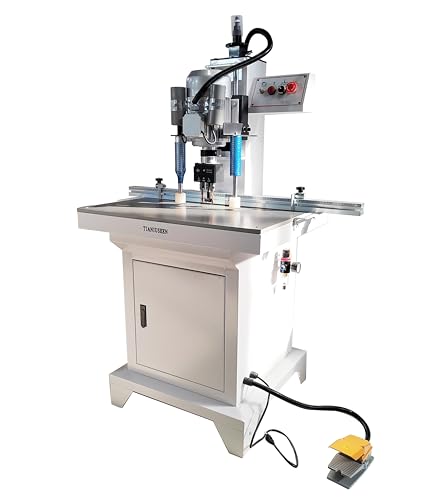

| Tianiuseen Pneumatic Single-Head Hinge Boring Machine, 110V |  | Best for Controlled, Safety-Focused Setup | Power source: Corded electric | Voltage: 110 V | Power: 1500 W | VIEW ON AMAZON | See Our Full Breakdown |
| DVALLEY 1100W Hinge Drilling and Boring Machine |  | Best Value for a Compact Shop | Power source: Corded electric | Voltage: 110 V | Power: 1100 W | VIEW ON AMAZON | See Our Full Breakdown |
| THUXEON Pneumatic Hinge Drilling Machine, 110V, 1500W |  | Best for Long-Board Positioning | Power source: AC | Voltage: 110 V | Power: 1500 W | VIEW ON AMAZON | See Our Full Breakdown |
| HQHAOTWU Pneumatic Dust-Free Hinge Boring Machine |  | Best for Dust Collection | Power source: Air powered | Motor power: 1.5 kW | Voltage: 110 V | VIEW ON AMAZON | See Our Full Breakdown |
| pneumatic hinge drilling machine | Voltage | Power | Maximum speed |
|---|---|---|---|
| HNZXIB Pneumatic Hinge Drillin | 110V | — | 2800 rpm |
| TECHTONGDA Hinge Boring Drill | — | Air powered; requires an electric and air source | 2880 rpm |
| ADWAN Manual Hinge Drilling Ma | — | — | — |
| LGXEnzhuo 110V Pneumatic Singl | 110 V AC | — | — |
| Banfluxion 110V Pneumatic Wood | 110V | 1500W | 2880 rpm |
| HESMAX 1100W Hinge Drilling Ma | 110 V | 1100 W | — |
| PreAsion 110V Portable Hinge D | 110 V | 1100 W | — |
| BREVELTION 110V Pneumatic Hing | 110 V | 1500 W | 2880 rpm |
| LLNC Portable Hinge Boring Mac | 110 V | 1100 W | — |
| 1100W Portable Woodworking Hin | 110 V | — | — |
| HQHAOTWU Pneumatic Double-Stat | 110 V | — | 3400 rpm |
| Tianiuseen Pneumatic Single-He | 110 V | 1500 W | 2880 rpm |
| DVALLEY 1100W Hinge Drilling a | 110 V | 1100 W | 2880 rpm |
| THUXEON Pneumatic Hinge Drilli | 110 V | 1500 W | — |
| HQHAOTWU Pneumatic Dust-Free H | 110 V | — | 3400 rpm |
More Details on Our Top Picks
HNZXIB Pneumatic Hinge Drilling Machine, 110V
The HNZXIB stands apart from the wood-focused TECHTONGDA because its stated material range includes PVC panels and aluminum profiles as well as MDF, particle board, and solid wood. Its 45 mm hinge-hole spacing and 9.5 mm screw holes are designed to form the pattern in one pass, which can reduce repositioning when repeating that layout. Pneumatic pressing rollers and dual sliding rails support consistent workpiece positioning, while the 10–100 mm depth range offers more adjustment than the TECHTONGDA’s stated 50 mm maximum. The tradeoff is a large 980 × 720 × 1550 mm footprint and a requirement for both a compatible air supply and 110V power. Buyers should also verify that its 45 mm pattern matches their hinges before choosing it.
Pros:- Drills 45 mm-spaced hinge holes and 9.5 mm screw holes in one pass
- Supports listed materials including wood, PVC, and aluminum profiles
- Pneumatic rollers and dual sliding rails help position workpieces consistently
- Depth adjusts from 10 to 100 mm
Cons:- The 980 × 720 × 1550 mm machine needs substantial shop space
- Requires a compatible compressed-air supply
- 110V specification may not suit the buyer’s electrical setup
Best for: Cabinet shops drilling the stated hinge pattern across wood, PVC, or aluminum workpieces
Not ideal for: Small workshops without floor space, compressed air, or compatible 110V power
- Voltage:110V
- Motor power:1.5 kW
- Maximum speed:2800 rpm
- Operating air pressure:0.4–0.6 MPa
- Maximum drilling diameter:35 mm
- Drilling depth:10–100 mm
- Hole layout:45 mm hinge-hole spacing; 9.5 mm screw holes
- Supported materials:Particle board, MDF, laminated panels, solid wood, PVC panels, aluminum profiles
- Dimensions:980 × 720 × 1550 mm
Our verdict“Choose the HNZXIB if you need its 45 mm hole layout and stated material range, and have the space, air, and 110V supply it requires.”

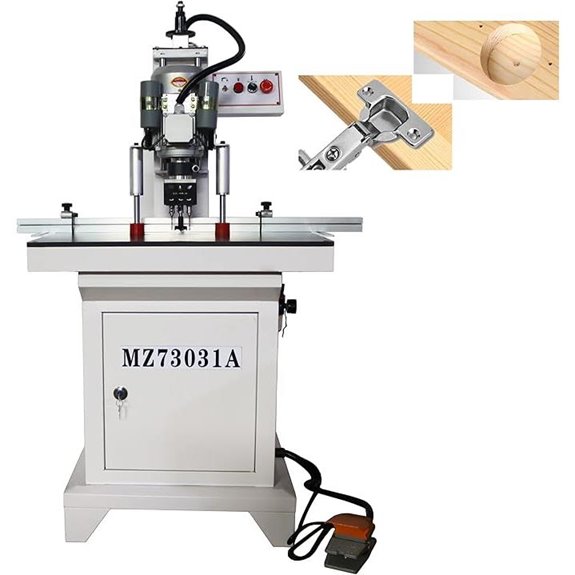

TECHTONGDA Hinge Boring Drill Press Machine
The TECHTONGDA’s clearest distinction from the ADWAN is its three-hole layout in one operation: a 35 mm cup hole plus two 3 mm screw holes spaced 48 mm apart. That specific pattern suits buyers whose hinges call for those smaller screw holes; the ADWAN instead lists 48-6 and 45-9.5 bit kits, giving it different layout options. A foot pedal frees the operator’s hands, and the graduated scale aids alignment along workpieces up to 1,000 mm long. Its stated 50 mm drilling depth is less than the HNZXIB’s 100 mm upper range, and this press needs both electricity and compressed air. The listed motor power also conflicts: the description says 1.5 kW, while the specifications say 1.1 kW, so confirm the rating before matching it to shop requirements.
Pros:- Bores one 35 mm cup hole and two 3 mm screw holes together
- Foot pedal provides hands-free control
- Graduated scale supports alignment
- Accommodates workpieces up to 1,000 mm long
Cons:- Requires both an electrical source and compressed air
- Motor power is listed as both 1.5 kW and 1.1 kW
- Maximum stated drilling depth is 50 mm
Best for: Cabinet makers whose hinge hardware uses a 35 mm cup and two 3 mm screw holes at 48 mm spacing
Not ideal for: Buyers needing other screw-hole layouts, deeper listed capacity, or a machine with a consistent published motor rating
- Drill type:Drill press
- Power:Air powered; requires an electric and air source
- Motor power:1.5 kW in description; 1.1 kW in specifications
- Maximum speed:2880 rpm
- Hole layout:35 mm large hole; two 3 mm holes spaced 48 mm apart
- Maximum drilling depth:50 mm
- Maximum workpiece length:1000 mm
- Dimensions:28.7 × 25.2 × 58.3 in
- Included component:Foot pedal
Our verdict“Pick the TECHTONGDA when its 35 mm and 3 mm hole pattern matches your hinges and you value foot-pedal operation.”
ADWAN Manual Hinge Drilling Machine with Two Drill Bits
The ADWAN is the lineup’s manual option, with two included drill-bit kits—48-6 and 45-9.5—rather than the TECHTONGDA’s fixed stated pattern of a 35 mm cup and two 3 mm holes at 48 mm spacing. That makes the ADWAN a fit for woodworkers who need to switch between those supplied hinge layouts. Its 0–40 mm depth limiter and 50 cm positioning dial support repeatable setup, though its maximum depth is below the TECHTONGDA’s 50 mm. A gas spring compressor and side clamps are intended to help control positioning, but the machine is still a 40 lb specialized woodworking tool, not a portable general-purpose drill. Buyers working with materials beyond wood should look at a model such as the HNZXIB, which lists PVC and aluminum among its supported materials.
Pros:- Includes 48-6 and 45-9.5 drill-bit kits
- Adjustable 0–40 mm depth limiter
- 50 cm positioning dial and side clamps support setup
- Designed for repeat hinge drilling in wood cabinetry
Cons:- 40 lb weight limits portability
- Specified for wood rather than a broader range of materials
- Maximum listed depth is 40 mm
Best for: Cabinet and wardrobe woodworkers who need to alternate between the included 48-6 and 45-9.5 drilling kits
Not ideal for: Shops needing pneumatic operation, broader material support, or a machine for frequent relocation
- Included drill bits:48-6 and 45-9.5 kits
- Adjustable drilling depth:0–40 mm
- Positioning dial length:50 cm (19.6 in)
- Weight:40 lb
- Motor speed:2840 r/min
- Cutting diameter:35 mm
- Minimum bore diameter:3 mm
- Material:Wood
- Dimensions:12 × 23 × 15 in
Our verdict“Choose the ADWAN for two supplied hinge layouts and manual depth control when your work is limited to wood.”
LGXEnzhuo 110V Pneumatic Single-Head Hinge Boring Machine, 1.5 kW
The LGXEnzhuo pairs a three-hole, single-head setup with a stated maximum workpiece length of 1,000 mm, which makes it a practical candidate for cabinet, wardrobe, and bookcase door production. Like the TECHTONGDA, it can drill a hinge hole and two screw holes together, but the TECHTONGDA provides more detail about its screw-hole diameter and spacing. The LGXEnzhuo instead lists adjustable positioning and depth calibration, useful for setting repeat locations and controlling a stated 50 mm maximum depth. Its 1.5 kW copper-core motor and 110 V supply are clearly specified, though buyers still need an air source at 0.6–0.8 MPa. Compared with the HNZXIB’s wider stated depth range and material list, this model’s published application is more focused on woodworking doors.
Pros:- Drills a hinge hole and two screw holes in one operation
- Adjustable positioning and depth calibration aid repeat setup
- Lists workpieces up to 1,000 mm long
- Includes woodworking bits, chuck key, and manual
Cons:- Requires compressed air at 0.6–0.8 MPa
- 110V supply may not match every workshop
- Published details do not specify screw-hole diameter or spacing
Best for: Cabinet and wardrobe shops drilling repeated three-hole hinge patterns on doors up to 1,000 mm long
Not ideal for: Buyers needing a detailed screw-hole layout, deeper drilling range, or listed support for plastics and metals
- Power source:Air powered
- Voltage:110 V AC
- Motor power:1.5 kW
- Maximum drilling diameter:35 mm
- Maximum hole depth:50 mm
- Maximum workpiece length:1000 mm
- Spindle speed:2880 rpm
- Air pressure:0.6–0.8 MPa
- Included components:Woodworking drill bits, chuck key, user manual
Our verdict“The LGXEnzhuo suits 110V woodworking shops that need repeat three-hole drilling on cabinet doors up to one meter long.”
Banfluxion 110V Pneumatic Woodworking Hinge Drilling Machine
Banfluxion combines a 0–50 mm punching depth, adjustable stroke, scale, and positioning stop with a foot switch and emergency stop. That control package makes it more oriented toward a fixed production station than the 40 lb ADWAN, which is manual and lighter to relocate but offers only 0–40 mm depth. Its listed combination drill is 45-9.5, while the TECHTONGDA specifies a different screw-hole pattern—two 3 mm holes at 48 mm spacing—so the right choice depends on the hinge layout you need. Banfluxion’s 64 kg net weight and 81 × 72.5 × 167 cm package signal a substantial footprint and handling demands. It also needs a 0.6–0.8 MPa air supply and 110V power, so it fits a prepared shop better than a flexible, occasional-use workspace.
Pros:- Adjustable 0–50 mm punching depth and stroke
- 45-9.5 combination drill supports a defined hinge layout
- Foot switch keeps hands available for workpiece handling
- Emergency stop is included
Cons:- 64 kg net weight makes relocation difficult
- Requires compressed air at 0.6–0.8 MPa
- 110V power specification may limit workshop compatibility
Best for: Woodworking shops setting up a stationary hinge-drilling station for repeated 45-9.5 pattern work
Not ideal for: Small workshops, mobile crews, or buyers without 110V power and 0.6–0.8 MPa compressed air
- Voltage:110V
- Power:1500W
- Maximum speed:2880 rpm
- Punching depth:0–50 mm
- Total stroke:Adjustable up to 7 cm
- Drills:1 × 35 mm, 2 × 8 mm
- Combined drill model:45-9.5
- Air pressure:0.6–0.8 MPa
- Net weight:64 kg
Our verdict“Choose Banfluxion for a stationary shop that needs foot-switch control and 45-9.5 drilling, provided its air, power, and space requirements fit.”
HESMAX 1100W Hinge Drilling Machine for Woodworking
The HESMAX stands out for combining a 0–40 mm depth range with adjustable drilling positions, giving cabinet and door makers room to adapt setups across different panels. Its 50 cm positioning scale helps repeat hole placement, while the air spring clamp holds the panel during drilling. Compared with the LLNC Portable Hinge Boring Machine, HESMAX has a clearly stated 40 mm depth range; LLNC’s listing conflicts between 30 mm and 40 mm. The tradeoff is a single-speed 1100 W motor, so there is no speed adjustment for different materials or tasks. At 40.7 lb, it can be moved around a shop, but it is not an especially light option for frequent transport.
Pros:- Adjustable positions and 0–40 mm depth accommodate varied panel setups
- 50 cm positioning scale supports repeatable hole placement
- Air spring clamp helps secure panels during drilling
- Includes 35 mm and 8 mm drill bits
Cons:- Single speed limits adjustment for different materials and drilling tasks
- At 40.7 lb, frequent transport may be inconvenient
Best for: Cabinetmakers who want adjustable drilling positions and a clearly stated depth range for recurring panel work
Not ideal for: Woodworkers who need variable speed or regularly carry their machine between job sites
- Voltage:110 V
- Power:1100 W
- Maximum rotational speed:2840 rpm
- Drilling depth:0–40 mm
- Positioning scale:50 cm (19.6 in)
- Weight:40.7 lb (18.5 kg)
- Included drill bits:1 × 35 mm bit and 2 × 8 mm bits
- Number of speeds:1
Our verdict“Choose HESMAX for adjustable shop drilling with a defined 40 mm depth range, provided one speed suits your work.”
PreAsion 110V Portable Hinge Drilling Machine, 1100W
PreAsion’s clearest advantage is its adjustable vertical and horizontal positioning, which gives users more setup flexibility when aligning hinge holes across cabinet doors and wardrobe panels. The board compression device and 50 cm scale support steady, repeatable placement, and the included 35 mm and 8 mm bits cover the listed hinge drilling setup. It shares a 0–40 mm depth range and 1100 W motor with the HESMAX 1100W Hinge Drilling Machine, so the choice between them turns on the stated positioning adjustments and layout details rather than a deeper cut. Its limits are practical: it weighs 40.7 lb, and its single speed offers no way to tune rotation for different jobs.
Pros:- Adjustable vertical and horizontal drilling positions
- Board compression device helps secure panels
- 50 cm positioning scale supports consistent setup
- Includes 35 mm and 8 mm hinge drill bits
Cons:- 40.7 lb weight makes frequent job-site carrying less convenient
- Single-speed operation limits control over drilling pace
Best for: Cabinet and wardrobe shops that need vertical and horizontal adjustment for repeat hinge placement
Not ideal for: Mobile installers who need a light machine or woodworkers who want selectable speeds
- Voltage:110 V
- Power:1100 W
- Maximum drilling depth:0–40 mm
- Rotation speed:2840 rpm
- Hinge bit layout:45-9.5
- Positioning scale:50 cm (19.6 in)
- Weight:40.7 lb (18.5 kg)
- Dimensions:14 × 11.8 × 20.5 in
- Number of speeds:1
Our verdict“Pick PreAsion when its vertical and horizontal adjustment fits your setup needs and one-speed operation is acceptable.”
BREVELTION 110V Pneumatic Hinge Boring Machine, Single Head, 48-6 Combined Drill
Among these five, BREVELTION lists the deepest adjustable range: 0–50 mm, compared with the 0–40 mm ranges on the HESMAX and PreAsion. That extra listed depth may suit thicker workpieces or setups that need more reach, while its 100 cm scale offers more positioning length than their 50 cm guides. The air-powered board clamp, foot switch, and emergency stop also give it a more involved operating setup: the foot control can leave hands free to manage a panel, but compressed air is required alongside 110 V power. Its product data lists different drilling capacities for wood and metal without explaining the figures, so buyers should not assume those numbers describe a typical hinge-hole setup.
Pros:- 0–50 mm adjustable punching depth exceeds the listed ranges of HESMAX and PreAsion
- 100 cm scale provides a longer positioning guide
- Air-powered board clamp and foot switch support controlled panel handling
- Emergency stop is included
Cons:- Requires both a 110 V supply and compressed air
- Wood and metal capacity figures are listed without clarifying their context
Best for: Woodworking shops with compressed air that need a deeper stated drilling range and a longer positioning scale
Not ideal for: Home users without an air supply or buyers who need clearly explained material capacity figures
- Voltage:110 V
- Power:1500 W
- Power source:Air powered
- Maximum speed:2880 rpm
- Punching depth:0–50 mm
- Scale length:100 cm (39.4 in)
- Air pressure:0.6–0.8 MPa
- Drills:1 × 35 mm and 2 × 3 mm
- Controls and safety:Button, foot switch, and emergency stop
Our verdict“Choose BREVELTION for its longer scale and 50 mm depth range if your shop has compressed air and the capacity figures fit your work.”
LLNC Portable Hinge Boring Machine, 110V, 1100W
LLNC is the more compactly specified choice here, with a stated 20 kg weight and a 50 cm horizontal pointer for positioning hinge work. Its 1100 W motor and 2840 RPM speed are close to the HESMAX and PreAsion figures, while the 48-6 drill model sets it apart from their listed bit combinations. The main purchasing concern is the conflicting depth information: the description says 0–30 mm, but the title lists 0–40 mm. That ambiguity makes it harder to match the machine to a required hole depth than either HESMAX or PreAsion, both of which specify 0–40 mm consistently. The listed 45 mm cutting diameter also needs to suit the buyer’s intended tooling and hinge pattern.
Pros:- 20 kg stated weight is lower than the 40.7 lb HESMAX and PreAsion listings
- Adjustable depth and horizontal positioning are described
- 50 cm pointer helps position work across panels
- 1100 W copper motor is specified
Cons:- Depth is inconsistent between the 0–30 mm description and 0–40 mm title
- 45 mm cutting diameter may not match every hinge drilling setup
Best for: Woodworkers who prioritize a 20 kg machine and can confirm the required depth and tooling before buying
Not ideal for: Production users who need a dependable stated 40 mm depth or unambiguous cutting specifications
- Voltage:110 V
- Power:1100 W
- Rotation speed:2840 rpm
- Drilling depth:0–30 mm in description; title lists 0–40 mm
- Weight:20 kg (44 lb)
- Horizontal pointer:50 cm (19.6 in)
- Drill model:48-6
- Cutting diameter:45 mm
Our verdict“Consider LLNC if its stated weight suits your setup, but confirm the actual depth range before relying on it for a specific hinge pattern.”

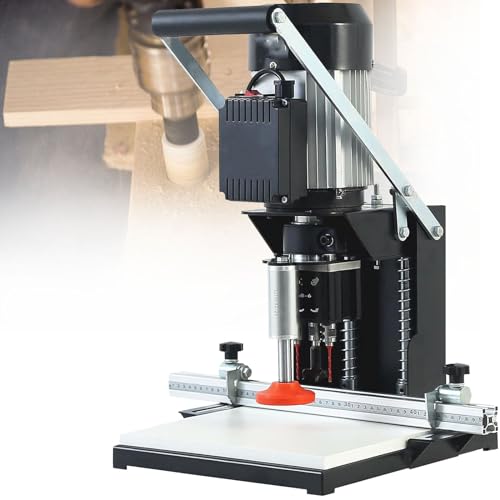

1100W Portable Woodworking Hinge Boring Machine
This machine is the distinct pick for buyers focused on drilling hinge and screw holes in one operation, with adjustable alignment and air spring clamping to hold cabinet or furniture work in place. Its 0–40 mm depth range matches the HESMAX and PreAsion, while its stated 2850 RPM is slightly above their listed speeds; that small difference is less decisive than whether the combined operation suits your workflow. The 50 cm scale guide gives it familiar positioning support. The limitation is the product data: the “45–9.5 mm” boring range is unclear, and the 110 V supply may not suit every workshop. Compared with the deeper-range BREVELTION, this model lists a shallower maximum depth but a more specific combined hinge-and-screw use.
Pros:- Designed to drill hinge and screw holes in one operation
- Adjustable alignment and 50 cm scale guide aid positioning
- Air spring compression helps hold workpieces steady
- 0–40 mm depth range is clearly listed
Cons:- 110 V supply may not match every workshop outlet
- Listed 45–9.5 mm boring range is unclear
Best for: Cabinet and furniture makers who want hinge and screw holes handled in one operation on a 110 V setup
Not ideal for: Buyers who need a clearly defined boring range, a deeper than 40 mm cut, or a different supply voltage
- Voltage:110 V
- Motor power:1100 W
- Maximum rotational speed:2850 rpm
- Number of speeds:1
- Drilling depth:0–40 mm
- Boring range:45–9.5 mm as listed
- Clamping system:Air spring compression
- Scale guide:50 cm
Our verdict“Choose this machine for its stated one-operation hinge and screw drilling workflow if 110 V power and the listed boring range suit your setup.”
HQHAOTWU Pneumatic Double-Station Hinge Boring Drill Press
The double-station layout makes this HQHAOTWU the production-focused choice in this group: it bores a 35 mm hinge cup and two 3 mm screw holes in one operation, with two 1.5 kW motors listed. That combination may suit shops repeating the same cabinet or door setup, where fewer separate drilling steps matter. Compared with the DVALLEY 1100W, it offers a deeper stated range of up to 50 mm and a longer included ruler, but the DVALLEY specifies 8 mm screw bits and a lighter, more compact footprint. Here, the 3 mm screw-hole specification is a key fit check before buying. The machine also needs a compressed-air supply at 0.6–0.8 MPa, so it makes less sense for a small workspace without shop air.
Pros:- Bores one 35 mm cup hole and two 3 mm screw holes in one operation.
- Double stations and two listed 1.5 kW motors suit repetitive production work.
- Adjustable 0–50 mm depth and positioning stop support repeatable setup.
- Includes a 66.9-inch ruler for measuring longer workpieces.
Cons:- Requires compressed air at 0.6–0.8 MPa.
- The specified 3 mm screw holes may not match common hinge hardware that calls for larger pilot holes.
- The listing does not state machine dimensions or weight, making space planning harder.
Best for: Cabinet and door shops with a compressed-air system that repeat hinge drilling across production runs.
Not ideal for: Small workshops without shop air, or buyers whose hinges require screw holes larger than the specified 3 mm.
- Power source:Air powered
- Voltage:110 V
- Motor power:1.5 kW × 2
- Maximum speed:3400 rpm
- Hole depth:0–50 mm
- Drill bits:1 × 35 mm, 2 × 3 mm
- Air pressure:0.6–0.8 MPa
- Stations:Double
- Included ruler:66.9 in (1700 mm)
Our verdict“Choose it for repeat cabinet or door work if its 3 mm screw-hole size matches your hardware and your shop has the required air supply.”

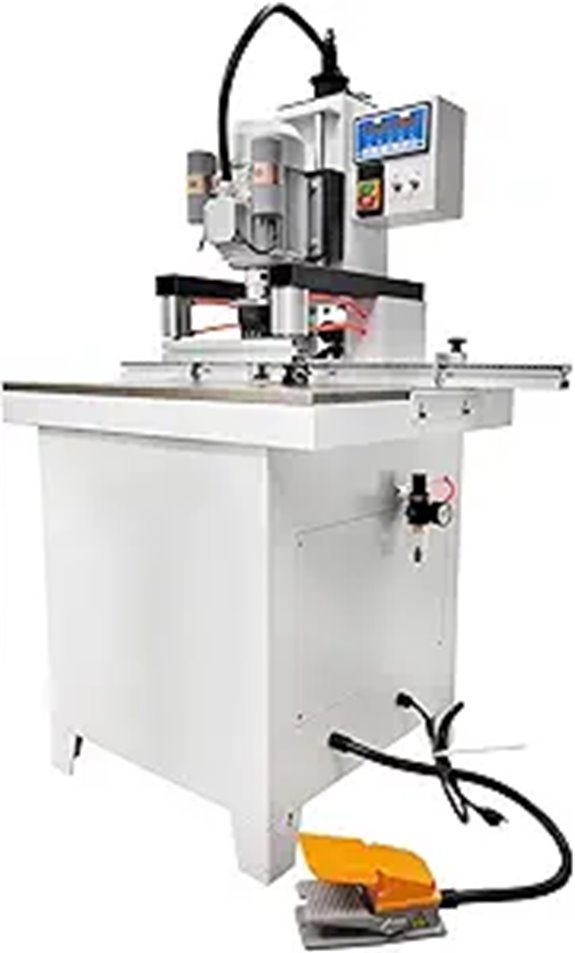

Tianiuseen Pneumatic Single-Head Hinge Boring Machine, 110V
The Tianiuseen pairs a foot switch and emergency stop with adjustable clamps and measurement scales, giving operators more direct control over positioning and stopping than the simpler setup described for the HQHAOTWU Double-Station. Its 0–50 mm punching depth matches that machine’s stated range, though this is a single-head model and the listing gives a lower maximum speed of 2880 rpm. The included 35 mm and two 8 mm bits make the hole pattern worth checking against your hinge hardware; the HQHAOTWU, by comparison, lists 3 mm screw bits. A lockable storage compartment helps keep accessories with the machine, but its 64 kg net weight makes it a poor fit for a bench that needs frequent rearranging. Air pressure is specified even though the power source is listed as corded electric, so buyers should clarify the pneumatic setup.
Pros:- Foot switch and emergency stop give operators accessible control.
- Adjustable clamps and scales support repeatable workpiece positioning.
- Includes a 35 mm bit and two 8 mm bits.
- Lockable compartment provides storage for parts and tools.
Cons:- At 64 kg net, it is difficult to move between workstations.
- The listing specifies air pressure but calls the power source corded electric, leaving the pneumatic setup unclear.
- Single speed of 2880 rpm offers no speed adjustment.
Best for: Cabinet makers who want operator controls, a safety stop, and onboard storage at a fixed workstation.
Not ideal for: Mobile workshops or buyers who need a clearly documented air connection and a light machine.
- Power source:Corded electric
- Voltage:110 V
- Power:1500 W
- Maximum speed:2880 rpm
- Punching depth:0–50 mm
- Drill bits:1 × 35 mm, 2 × 8 mm
- Scale length:100 cm
- Air pressure:0.6–0.8 MPa
- Net weight:64 kg
Our verdict“Pick this for a stationary shop that values operator controls and storage, after confirming how its air requirement fits your setup.”
DVALLEY 1100W Hinge Drilling and Boring Machine
Among these five, the DVALLEY has the clearest combination of a lighter listed weight and compact dimensions: 40.7 lb and 14 × 11.8 × 22.8 inches. It still drills one 35 mm hinge hole and two 8 mm screw holes together, so a smaller shop can get the common three-hole pattern without stepping up to the 64 kg Tianiuseen or THUXEON. The tradeoff is a 1100 W motor and a 0–40 mm depth range, both below the 1500 W and 0–50 mm specifications of those larger machines. Its 50 cm scale is also shorter than the 100 cm scales listed for them. The pneumatic pressing mechanism may help with operation, but the supplied data does not state an air-pressure range, so confirm the required shop setup before choosing it.
Pros:- Drills a 35 mm hinge hole and two 8 mm screw holes in one operation.
- Listed 40.7 lb net weight is much lower than the 64 kg Tianiuseen and THUXEON.
- Compact listed dimensions suit workshops with limited bench space.
- Built-in 50 cm scale and adjustable depth support setup.
Cons:- 0–40 mm depth range is shorter than the 0–50 mm range listed for several alternatives.
- 1100 W motor is less powerful on paper than the 1500 W Tianiuseen and THUXEON.
- Air-pressure requirements are not provided in the supplied specifications.
Best for: Small cabinet shops and serious hobbyists who need simultaneous hinge and screw-hole drilling in a machine they can reposition.
Not ideal for: Production users needing 50 mm depth, a long measuring scale, or clearly specified pneumatic requirements.
- Power source:Corded electric
- Voltage:110 V
- Power:1100 W
- Maximum speed:2880 rpm
- Drilling depth:0–40 mm
- Drill bits:1 × 35 mm, 2 × 8 mm
- Scale length:19.6 in (50 cm)
- Dimensions:14 × 11.8 × 22.8 in
- Net weight:40.7 lb
Our verdict“Choose the DVALLEY when compact size and lower listed weight matter more than the deeper range and longer scale of larger machines.”
THUXEON Pneumatic Hinge Drilling Machine, 110V, 1500W
The THUXEON’s 100 cm positioning scale gives it an edge for laying out repeated hinge locations along cabinet or wardrobe parts. It pairs that reach with a workpiece pressure device, foot switch, and 0–50 mm depth adjustment; compared with the DVALLEY 1100W, it offers a longer scale and greater stated depth, while the DVALLEY is far lighter and more compact. The THUXEON also specifies one 35 mm bit and two 8 mm bits, but its listing says to confirm hole sizes before purchase, a sensible check for any hinge pattern. At 141 lb and nearly 58 inches tall, this is a substantial stationary machine. It needs 0.6–0.8 MPa air pressure, so its size and shop-air requirement make it better suited to a dedicated production area than a flexible bench setup.
Pros:- 100 cm positioning scale supports work across longer pieces.
- Adjustable 0–50 mm depth accommodates a range of hinge cup depths.
- Foot switch and workpiece pressure device support controlled operation.
- Drills the 35 mm cup hole and two 8 mm screw holes together.
Cons:- At 141 lb and 58 inches tall, it takes substantial floor or bench space.
- Requires compressed air at 0.6–0.8 MPa.
- The listing advises confirming hole sizes, so hinge compatibility needs checking.
Best for: Cabinet and wardrobe shops that position multiple hinges along long workpieces and have a fixed machine bay.
Not ideal for: Small or mobile workshops, and buyers without compressed air or room for a 58-inch-tall machine.
- Power source:AC
- Voltage:110 V
- Power:1500 W
- Speed:2880 r/min
- Punching depth:0–50 mm
- Drill bits:1 × 35 mm, 2 × 8 mm
- Scale:39.4 in (100 cm)
- Air pressure:0.6–0.8 MPa
- Dimensions:28.7 × 23.6 × 58 in
Our verdict“Choose the THUXEON for long-workpiece positioning in a fixed shop that can accommodate its size and air requirement.”
HQHAOTWU Pneumatic Dust-Free Hinge Boring Machine
The HQHAOTWU’s bottom-drilling design and debris box give it a distinct role for shops trying to keep hinge-boring debris contained at the machine. It still drills the standard 35 mm cup hole and two 8 mm screw holes in one operation, much like the THUXEON, and adds horizontal and vertical positioning adjustments. Its stated maximum depth is only 30 mm, though, compared with 50 mm on the THUXEON and DVALLEY, so deeper hinge cups may rule it out. The maximum workpiece length is listed as 1000 mm, which helps define its intended scale of use. This is an air-powered machine requiring 0.6–0.8 MPa; buyers without shop air should look at the corded DVALLEY instead. The dust box can collect debris, but the description does not claim dust-free operation.
Pros:- Debris box collects material from the bottom-drilling design.
- Drills a 35 mm hinge cup and two 8 mm screw holes in one operation.
- Horizontal and vertical positioning adjustments support setup flexibility.
- Lists a maximum workpiece length of 1000 mm.
Cons:- Maximum hole depth of 30 mm is less than the 50 mm offered by the THUXEON and DVALLEY.
- Requires compressed air at 0.6–0.8 MPa.
- The supplied description does not establish that the debris box captures all airborne dust.
Best for: Cabinet shops that want an integrated debris box and need hinge drilling on workpieces up to 1000 mm long.
Not ideal for: Buyers needing more than 30 mm drilling depth or a machine that operates without compressed air.
- Power source:Air powered
- Motor power:1.5 kW
- Voltage:110 V
- Maximum speed:3400 rpm
- Maximum drilling diameter:35 mm
- Maximum hole depth:30 mm
- Maximum workpiece length:1000 mm
- Air pressure:0.6–0.8 MPa
- Drill model:45-9.5
Our verdict“Pick this if debris collection is a priority and a 30 mm drilling depth covers your hinge hardware.”
How We Picked
I ranked these machines by how clearly their described format fits a real hinge drilling workflow: pneumatic operation, power and voltage details, head configuration, portability, and named accessories. I gave more weight to options whose listing identifies a specific role or setup, such as the ADWAN’s manual operation and two bits, the BREVELTION’s single head and 48-6 combined drill, or the HQHAOTWU double-station and dust-free designs. Those details help buyers judge fit before they commit to a machine footprint or workflow.
The ranking favors a useful balance of practical fit and understandable tradeoffs over the largest stated wattage. A portable single-head machine can suit a small shop better than a higher-powered unit, while a double-station model may earn its place when repeated work matters. Product names alone do not establish accuracy, included accessories, air requirements, or compatibility with particular hinges, so buyers should confirm those specifications with the seller. This comparison is based on the product information supplied for these 15 listings.
Factors to Consider When Choosing Pneumatic Hinge Drilling Machine
I’d match a machine to the full door-making process, not just the advertised drilling power. These choices differ in how they handle repeated work, what utilities they need, and how much adjustment they leave to the operator.
Match the machine to your production pace
Start with how many doors you bore in a typical session and whether you drill one door at a time or batch similar parts. A single-head setup usually keeps the process easier to stage, while a double-station machine can make sense when repeated operations justify dedicating more bench space. Avoid choosing a multi-station design just because it sounds faster; your actual cycle may be limited by measuring, clamping, or changing workpieces. Ask whether each station works independently and what adjustments are shared. For low-volume repairs, manual drilling can be a reasonable compromise. For regular cabinet runs, prioritize repeatable stops and clamping over a headline speed claim.
Check the air and electrical setup together
“Pneumatic” describes an air-powered component, but the machine may also use an electric motor or controls. Verify the required compressor pressure and airflow, along with the voltage, plug, and circuit requirements. A 110V label does not tell you whether the circuit can support a listed 1500W motor alongside other shop tools. Compressor capacity should be judged by sustained output at the required pressure, rather than tank size alone. A mismatch can cause inconsistent operation or interruptions during a batch. Confirm both utility requirements in writing before buying.
Prioritize alignment and workpiece control
Hinge cup placement needs consistent distance from the door edge and repeatable depth, especially when a set of doors must match. Look for clear information about fences, stops, clamps, depth adjustment, and how the workpiece is held. A machine with more power cannot compensate for a door that shifts during drilling. Check which door sizes and thicknesses the fixture accommodates, and whether the fence can be adjusted without losing repeatability. If specifications are sparse, ask for a diagram or operating video before purchase. That check can prevent a machine from arriving unable to handle your common stock.
Treat portability as a setup question
A portable label can help when you move between work areas, but it says little about the machine’s weight, footprint, or stability in use. Compare overall dimensions and mounting needs with the bench or cart you plan to use. A compact machine still needs room for the door to sit flat and for the operator to position it safely. Frequent transport can also make calibration and secure mounting more important. Ask whether the machine needs to be bolted down and how it is carried. If it will stay in one place, a larger, more supported base may be preferable to a design chosen for mobility.
Confirm tooling and hinge compatibility
Do not assume a listed drill bit or combined drill covers every hinge cup size or material. Check the cutter diameter, shank fit, included quantity, replacement availability, and whether the machine accepts common tooling. Then compare those details with the hinges you already use, including cup diameter and required boring depth. A specialized bit package may save setup time but limit future choices. Ask whether bits are included or shown only as optional accessories. Tooling compatibility can change the total setup effort more than a small difference in motor wattage.
Plan dust control and upkeep before production
Wood dust affects visibility around the cut and adds cleanup time, so ask how a dust-free design collects debris and whether it needs a separate extractor. A dust-control label alone does not show collection efficiency or the size of the connection. Check how cutters are changed, which parts need routine cleaning, and whether replacement components are available. Pneumatic fittings and moving parts also need inspection as part of regular shop maintenance. For occasional work, easy access and simple cleanup may matter more than an elaborate collection arrangement. For repeated production, plan dust extraction alongside the machine rather than treating it as an afterthought.
Frequently Asked Questions
Do I need an air compressor for every machine described as pneumatic?
Usually, a pneumatic mechanism needs compressed air, but a listing may combine air-driven movement with an electric motor or other powered components. Check the machine’s required pressure and airflow rather than relying on the word “pneumatic.” Also confirm whether a compressor, hose, regulator, or fittings are included. If you do not already have suitable air service, include that equipment and setup in your decision. The ADWAN listing is described as manual, making it the clearest air-free option in this lineup.
Is a double-station machine worth it for a small cabinet shop?
It can be worthwhile when you regularly repeat the same operation and can keep both stations supplied with work. For one-off jobs or short runs, setup and floor space may outweigh the time saved. Ask how the stations are controlled, whether they can be adjusted separately, and whether each accepts your door sizes. Compare the machine’s full footprint with the bench space you actually have. A single-head machine is often easier to fit into a changing small-shop workflow.
Can I choose between these machines by wattage alone?
No. Wattage can help distinguish motor capacity, but it does not tell you whether the machine holds a door securely, sets boring depth consistently, or matches your hinge tooling. The 1500W listings should still be checked for air requirements, power supply, and workholding details, just like the 1100W options. A well-supported workpiece and useful stops can matter more to clean, repeatable results than a higher number. Compare complete operating specifications before treating wattage as a deciding factor.
What should I verify before buying a portable hinge boring machine?
Confirm the machine’s dimensions, weight, mounting method, and the room needed to support the full door during drilling. Ask whether the fence and stops hold their settings after transport, and whether the base needs bolting down for stable operation. Check that the voltage and air requirements match the places where you plan to use it. Verify the included cutter sizes and whether replacements are easy to obtain. These details reveal whether “portable” means practical for your work or simply movable between benches.
Which option makes the most sense if I only drill hinge cups occasionally?
For occasional work, the ADWAN manual machine is worth comparing first because it avoids a powered pneumatic setup and is listed with two drill bits. The tradeoff is that manual operation may take more effort and time when drilling several doors. If you expect occasional jobs to grow into regular batches, compare it with a portable powered single-head model and check its setup requirements. In either case, verify compatible cutter sizes and depth adjustment before ordering. Choose based on expected volume and repeatability needs, not on the assumption that the most powerful design is the easiest to use.
Conclusion
I’d choose the HNZXIB 110V as the best overall starting point for buyers who want a conventional pneumatic hinge drilling machine, subject to confirming its working specifications and included tooling. For best value in a simpler workflow, the ADWAN manual model is the clearest low-complexity pick, while beginners may also prefer its straightforward format if their workload is light. The HQHAOTWU Double-Station is the production-focused choice for shops that can use both stations and spare the space. Buyers seeking a more powerful listed motor can compare the LGXEnzhuo and THUXEON, both labeled 1500W, as premium candidates, then verify utilities and support details. For mobile work, shortlist PreAsion and LLNC; for dust-conscious setups, investigate the HQHAOTWU Dust-Free listing and confirm how collection works. The right pick is the one whose capacity, workholding, and shop connections fit the doors you actually make.
Halloween Picks
halloween
As an affiliate, we earn on qualifying purchases.
